NASA Satellite Monitors Ohio River Basin Lake Levels

A Detailed Insight into Water Bodies: The Impact of the SWOT Mission

The Ohio River Basin, a vast expanse stretching from Pennsylvania to Illinois, features a complex network of reservoirs, lakes, and rivers. This region, which spans an area nearly equivalent to the size of France, serves as a critical watershed for more than 25 million residents. Thanks to the U.S.-European Surface Water and Ocean Topography (SWOT) mission, researchers now have an unprecedented tool to monitor and measure water levels within this basin and beyond.

Overview of the SWOT Mission

The SWOT mission is a collaborative effort between NASA and the French space agency CNES (Centre National d’Études Spatiales). Since early 2023, the mission has provided a global perspective on Earth’s water bodies by measuring the height of nearly all water surfaces, including oceans, lakes, reservoirs, and rivers. This comprehensive coverage occurs at least once every 21 days across the globe. Additionally, the SWOT satellite assesses the horizontal spread of water in freshwater bodies, offering data that has become publicly accessible.

The Significance of the Data

Jida Wang, a hydrologist at the University of Illinois Urbana-Champaign and part of the SWOT science team, highlights the uniqueness of the data collected. The mission’s ability to simultaneously capture both water extent and levels, along with extensive and frequent coverage, marks a groundbreaking achievement in hydrological research.

Researchers are now equipped to calculate changes in water stored in lakes and reservoirs over time using this data. This capability is crucial for determining river discharge, which refers to the volume of water flowing through a river segment. Understanding these changes provides a clearer picture of water availability both within specific localities and across entire watersheds.

Visualization and Analysis

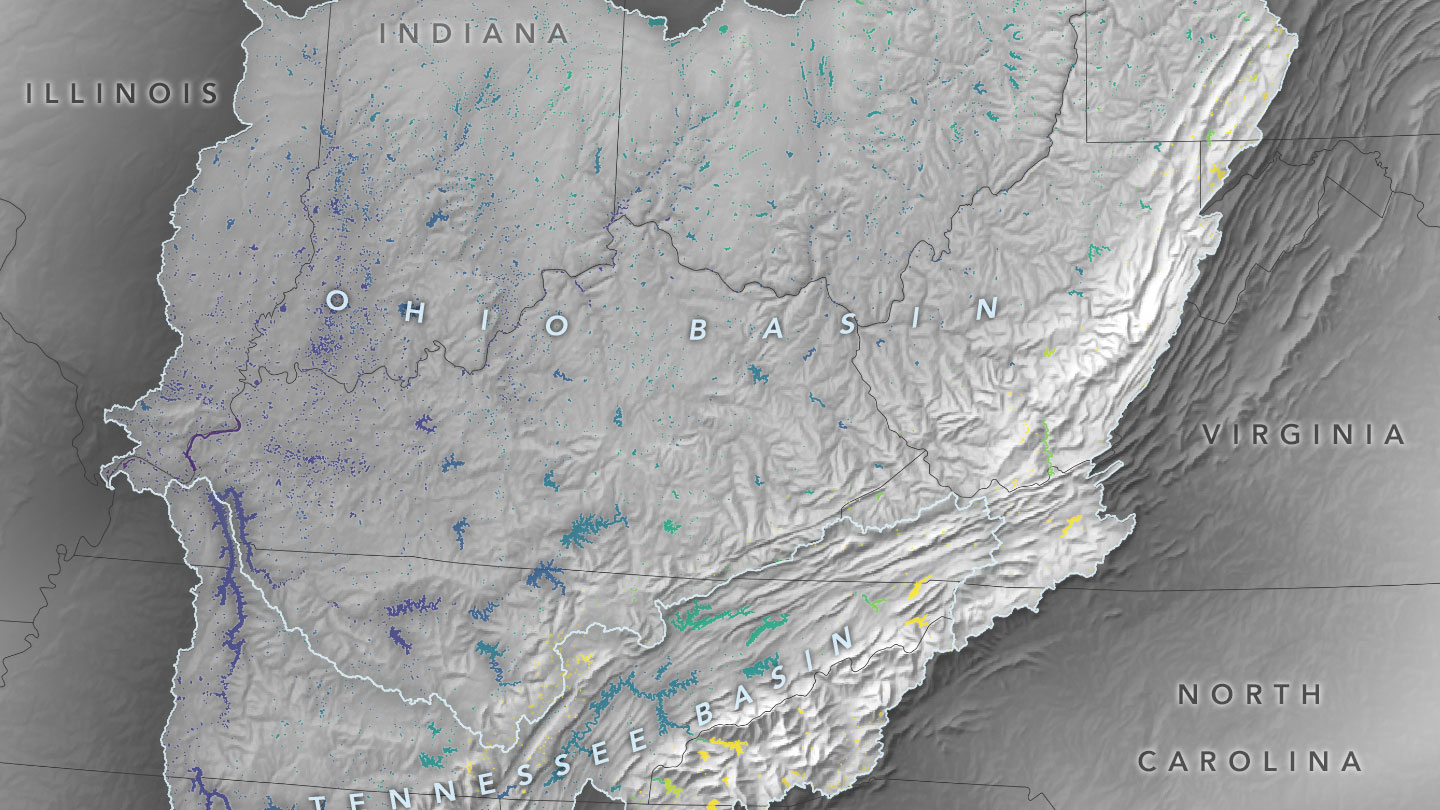

The SWOT mission’s data from July 2023 to November 2024 offers a visualization of average water levels above sea level in the Ohio River Basin, which eventually drains into the Mississippi River. The visualization employs color coding, with yellow representing water levels above 1,600 feet (500 meters) and dark purple indicating levels below 330 feet (100 meters). By examining these levels, hydrologists can effectively assess water availability trends over time.

Challenges in Estimating Freshwater Availability

Historically, predicting freshwater availability within a river basin posed significant challenges. Researchers relied on data from gauges installed at specific lakes and reservoirs, airborne surveys, and other satellites focusing on either water level or extent. However, ground-based and airborne instruments often suffer from limited spatial and temporal coverage. Although different satellites can provide some insights, their data may not always align temporally, necessitating supplemental ground-based measurements.

The complexity of calculating freshwater availability often involves sophisticated computer models. Traditional models, however, struggle in highly regulated basins like the Ohio River Basin, where dam operations introduce unpredictable variables. George Allen, a freshwater researcher at Virginia Tech, notes the limitations of these models in representing such complexities.

The Role of SWOT in Enhancing Water Management

U.S. river basins often comprise dams and reservoirs managed by various entities. While individual reservoir managers understand their section’s water behavior, planning for water availability along an entire river can be challenging. SWOT’s dual focus on rivers and lakes provides a more cohesive view, aiding water managers in understanding the broader dynamics of freshwater systems.

Colin Gleason, a hydrologist at the University of Massachusetts Amherst and a member of the SWOT science team, emphasizes how the mission’s data enables water managers to gain insights into the actions of other stakeholders within these systems. This enhanced transparency facilitates more effective water management strategies.

The Path Forward

Despite the promising possibilities, substantial work remains in harnessing the SWOT mission’s data. The satellite’s high-resolution view of water levels and extent generates a vast dataset that researchers must meticulously analyze. This process will require time and effort to unlock the full potential of the information.

The SWOT satellite was developed through a collaborative effort involving NASA and CNES, with contributions from the Canadian Space Agency (CSA) and the UK Space Agency. NASA’s Jet Propulsion Laboratory, managed by Caltech in Pasadena, California, spearheads the U.S. component of the project. For the mission’s flight system payload, NASA provided several key instruments, including the Ka-band radar interferometer (KaRIn), a GPS science receiver, a laser retroreflector, and a two-beam microwave radiometer.

On the international front, CNES contributed the Doppler Orbitography and Radioposition Integrated by Satellite system, the dual-frequency Poseidon altimeter (developed by Thales Alenia Space), the KaRIn radio-frequency subsystem (in collaboration with Thales Alenia Space and supported by the UK Space Agency), the satellite platform, and ground operations. The KaRIn high-power transmitter assembly was provided by CSA.

Conclusion

The SWOT mission represents a monumental step forward in our understanding of Earth’s water bodies. By offering detailed insights into water levels and extents, the mission equips researchers and water managers with the tools needed to make informed decisions about water availability and management. While challenges remain in processing the extensive data, the potential benefits for communities reliant on these vital water resources are immense.

For those interested in exploring more about the SWOT mission, further information can be found at the mission’s official website: https://swot.jpl.nasa.gov.
