NASA’s Breakthrough: Aerogel Antennas Revolutionizing Future Air Transportation
NASA has unveiled a groundbreaking advancement in antenna technology that could transform the future of air transportation. By utilizing one of the world’s lightest solid materials, engineers have developed an innovative antenna system that can be seamlessly integrated into the skin of aircraft. This new technology promises to enhance aerodynamics and improve the reliability of communication systems for drones and other emerging air transportation modes.
The Science Behind Aerogel Antennas
This cutting-edge antenna is constructed from a material known as aerogel, which NASA developed to facilitate satellite communications in environments where power and space are at a premium. Aerogels are composed of high-performance, flexible plastics called polymers, and they are renowned for their extremely low density and high air content—approximately 95%. This unique composition allows aerogels to be incredibly lightweight yet sturdy. Engineers have the ability to tweak the material’s properties, enabling it to be either as flexible as plastic wrap or as rigid as plexiglass.
Stephanie Vivod, a chemical engineer at NASA’s Glenn Research Center in Cleveland, explains the process: "By removing the liquid part of a gel, you’re left with an incredibly porous structure. If you’ve ever made Jell-O, you’ve done chemistry similar to the initial step of creating an aerogel."
NASA’s design sandwiches a layer of aerogel between a small circuit board and a matrix of thin, circular copper cells, capped with a specialized film known for its electrical insulation properties. This innovative design is referred to as an active phased array aerogel antenna within NASA and the aviation community.
Advantages and Applications
One of the primary advantages of aerogel antennas is their ability to conform to the shape of an aircraft, thereby reducing drag and enhancing aerodynamic efficiency. Additionally, these antennas save both weight and space, crucial factors in aircraft design. They also possess the capability to adjust individual array elements to minimize signal interference. Unlike traditional antennas, such as spikes and blades, aerogel antennas are less visually intrusive, resembling a flat honeycomb on an aircraft’s surface.

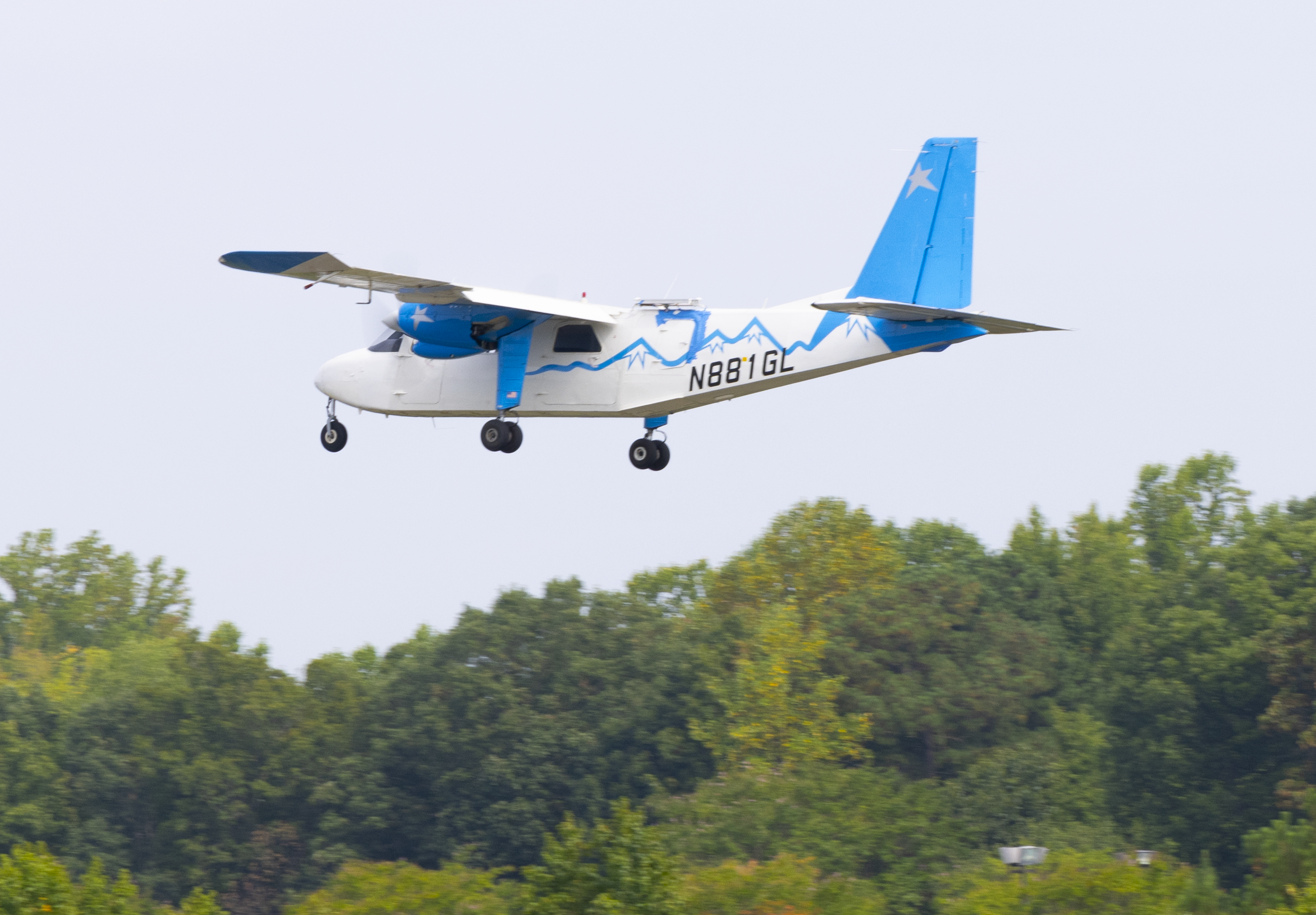

In the summer of 2024, NASA tested a rigid version of the aerogel antenna on a Britten-Norman Defender aircraft during an in-flight demonstration with the U.S. Navy at Naval Air Station Patuxent River in Maryland. The test aimed to evaluate the antenna’s performance in real-world flight conditions.
Successful Testing and Future Plans
In October of the previous year, NASA researchers at the Glenn Research Center, along with Eutelsat America Corp., a satellite communications company based in Houston, conducted ground tests on a version of the antenna mounted on a platform. The team successfully established a connection with a Eutelsat satellite in geostationary orbit, which then relayed a signal back to a satellite dish located at Glenn. Additional demonstrations at the center involved linking with a constellation of communications satellites operated by the data relay company Kepler in low Earth orbit. NASA researchers plan to design, build, and test a flexible version of the antenna later this year.
"This is significant because we are able to use the same antenna to connect with two very different satellite systems," stated Bryan Schoenholz, a researcher at NASA Glenn. Low Earth orbit satellites, positioned about 1,200 miles from Earth, move rapidly around the planet. In contrast, geostationary satellites are situated more than 22,000 miles away but orbit at speeds that match the Earth’s rotation, allowing them to remain stationary relative to the Earth’s surface.
Implications for Future Air Travel
The successful testing of the aerogel antenna concept is vital for assessing its potential real-world applications. Modern aircraft often rely on satellite relays to communicate with ground stations, which can introduce delays and the risk of communication loss. NASA’s aerogel antenna technology aims to ensure that these satellite links remain uninterrupted during flights. The antenna’s beam, a concentrated flow of radio waves, can be electronically steered with precision to maintain the connection, reducing the risk of dropped signals.
As new air transportation options, such as autonomous air taxis and delivery drones, are introduced into U.S. airspace, the reliability of communication systems becomes increasingly critical. NASA’s Advanced Air Mobility mission and the Transformative Aeronautics Concepts program are actively supporting research initiatives like aerogel antennas to bolster the industry’s efforts to safely expand these emerging transportation systems.
"If an autonomous air taxi or drone flight loses its communications link, we have a very unsafe situation," emphasized Schoenholz. "We can’t afford a ‘dropped call’ up there because that connection is critical to the safety of the flight."
Broader Impact and Future Research
Schoenholz, Vivod, and their colleagues are part of NASA’s Antenna Deployment and Optimization Technologies activity, which is a component of the Transformational Tools and Technologies project. This initiative seeks to develop technologies that mitigate the risk of radio frequency interference from air taxis, drones, commercial passenger jets, and other aircraft in increasingly congested airspace.
The development of aerogel antennas marks a significant step forward in the evolution of air travel. By integrating these advanced communication systems into the fabric of aircraft, NASA is paving the way for a future where air transportation is not only more efficient and reliable but also safer. As research progresses and more tests are conducted, the potential for aerogel antennas to revolutionize the aviation industry becomes increasingly evident.
For more information on NASA’s Advanced Air Mobility mission and related initiatives, visit the official NASA website.
For more Information, Refer to this article.
